4 Block Mould Q4/P

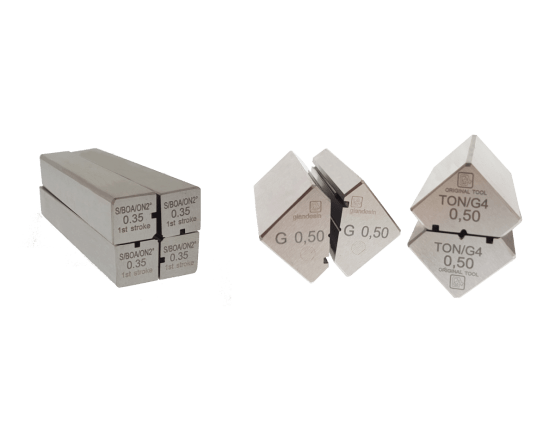

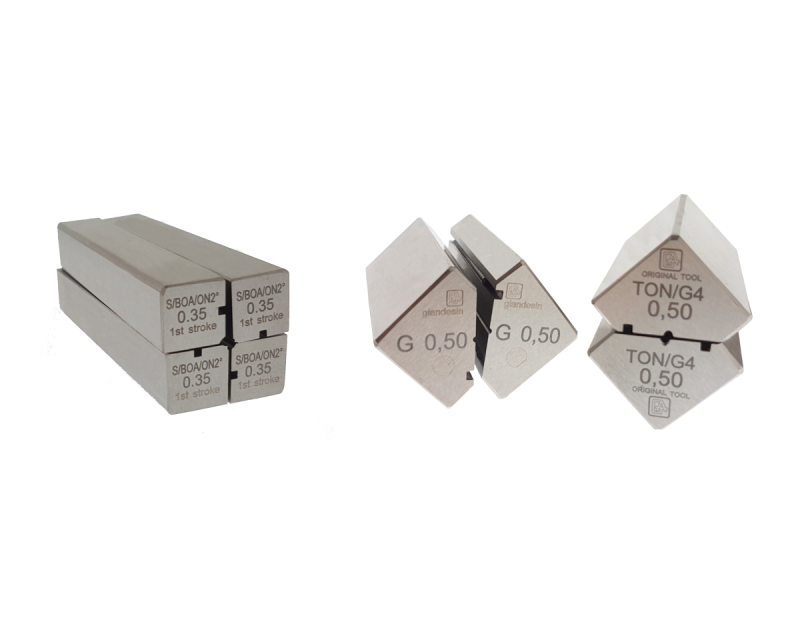

This blockholder, made in tempered steel, allows the beating of chain with round final shape, thanks to four of easily interchangeable inserts. The mould hammer the chain on four sides at the same time.
It is possible to obtain the following new models:
- ROUND SHAPE: Cable, Single curb, Double curb, Thickened (compacted) Single curb, Thickened double curb, Thickened triple curb.
- OTHER SHAPE (oval, cross section, etc.): new Brill chain, new Oval chain as Boa, etc.
Technical Data
- Width: 85 mm
- Depth: 80 mm
- Height: 80 mm
- Weight: 5 kg
- Mould maximum stroke: 3 mm
- Maximum chain width: 0,5 - 5,0 mm
- Strokes maximum: 2000 strokes/minutes
