Mould
Q4/C
Mould for necklace in continuos Q4/C

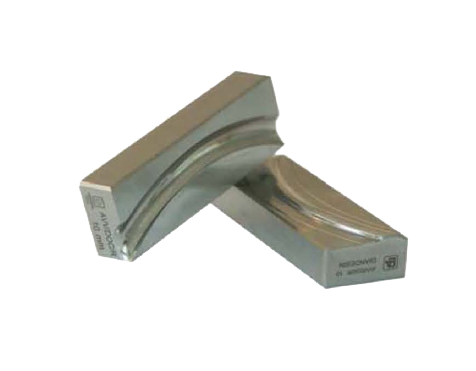

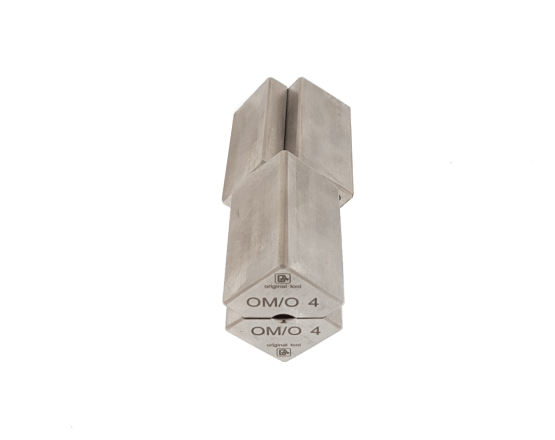

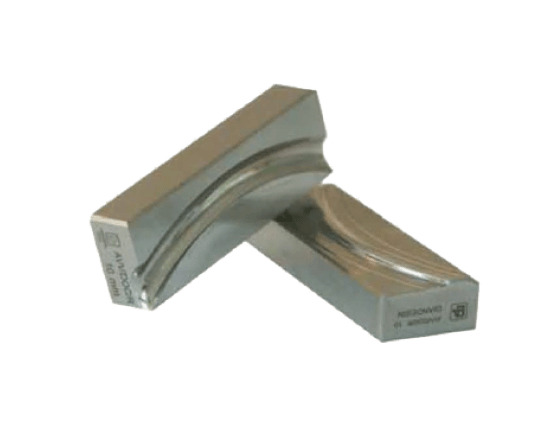

This die built with a special very flexible tempered steel is proper for the beating in continuous of stiff chains and semi-stiff type "necklace". The special geometry of the wedges that they compose the interchangeable equipment allows in
fact the beating in continuous according to a circular trajectory. The final section of the chain besides may have any shape, with calibration of the sides, very important for all the semi-stiff chains as Wrapped plate, omega, small cube, gas tube, Milanese mash, etc.
Technical Data
- Width: 100 mm
- Depth: 135 mm
- Height: 120 mm
- Weight: 10 kg
- Mould maximum stroke: 3 mm
- Maximum chain width: 12 mm
- Strokes maximum: 1500 strokes/minutes
